Blackmagic PYXIS 6K MONTURA PL

3.075,00 €
5 1
,
5/ 5
Impuestos incluidos
1 Artículo

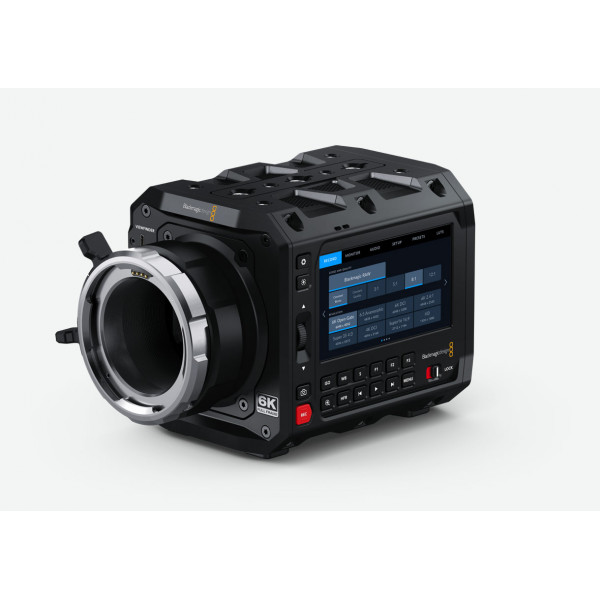

Cámara cinematográfica digital avanzada con un diseño increíblemente versátil, sensor 6K (36 x 24 mm) de fotograma completo, amplio rango dinámico y montura para objetivos PL . Admite tarjetas CFexpress para grabar en formato Blackmagic RAW con archivos proxy.

PRECOMPRA ENTREGA PREVISTA EN JUNIO
Cantidad
  • Política de seguridad Política de seguridad
  • Política de envío Política de envío
  • Política de devolución Política de devolución

Descripción

Blackmagic PYXIS 6K is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 6048 x 4032 full frame HDR sensor with built in optical low pass filter, dual native ISO, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 6K is available in three different models with fixed L-Mount, PL or locking EF lens mounts

Características de la cámara

Tamaño efectivo del sensor

36mm x 24mm (Full Frame)

Tipo de montura

Active L-Mount.

Control del objetivo

Iris and focus on supported lenses.

Rango dinámico

13 Stops.

ISO nativo dual

400 and 3200

Resoluciones de captura

6048 x 4032 (Open Gate 3:2) hasta 36 f/s
4832 x 4032 (Anamorphic 6:5) hasta 36 f/s
6048 x 3200 (6K DCI 17:9) hasta 48 f/s
6048 x 2520 (6K 2.4:1) hasta 60 f/s
4096 x 3072 (Super 35 4:3) hasta 50 f/s
4096 x 2160 (4K DCI 17:9) hasta 60 f/s
2112 x 1184 (Super 16 16:9) hasta 100 f/s
1920 x 1080 (1080 HD 16:9) hasta 120 f/s

Frecuencias de imagen

Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD.

Enfoque

Auto focus available using compatible lenses.

Control del diafragma

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.

Dimensiones de la pantalla

4” 1920 x 1080.

Brillo de la pantalla

1500 nits

Tipo de pantalla

LCD capacitive touchscreen.

Compatibilidad con metadatos

Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.

Controles

Touchscreen menus on 4 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Playback Button, 1 x Next Clip Button, 1 x Previous Clip Button, 1 x Lock Switch.

Código de tiempo

Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Conexiones

Total de entradas de video

No disponible

Total de salidas de video

1 x 12G-SDI up to 2160p60

1 x Viewfinder USB-C with power,
data, video and locking connector.

Entradas de audio analógico

1 x mini XLR analog audio in, switchable between
mic with phantom power support and line level
(up to +14dBu).

1 x 3.5mm Stereo Input.

Salidas de audio analógico

1 x 3.5mm headphone jack.

Entrada para señales de referencia

Tri-Sync/Black Burst and Timecode.

Interfaz informática

USB Type-C for external drive recording,
PTP camera control and software updates.

Ethernet

1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T.

Blackmagic PYXIS 6K

Audio

Micrófono

Integrated stereo microphone.

Altavoz integrado

1 x mono speaker.

Almacenamiento

Almacenamiento

2 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording.

Sistema de archivos

Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Códecs compatibles

Códecs

Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5,
H.264 Proxy in 1920 x 1080, 8-bit 4:2:0

Control

Control externo

Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.

iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over Ethernet for external control via HTTP when used with REST client applications such as Postman.

Características de almacenamiento

Soportes de grabación

1 x CFexpress Type B

1 x high speed USB-C expansion port for external media.

Formatos de grabación

Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200,6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.

Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies.

Velocidades de transferencia

Storage rates based on 30 frames per second.

6048 x 4032 (6K Open Gate 3:2)

Blackmagic RAW 3:1 - 370 MB/s
Blackmagic RAW 5:1 - 223 MB/s
Blackmagic RAW 8:1 - 140 MB/s
Blackmagic RAW 12:1 - 94 MB/s
Blackmagic RAW Q0 - 278 a 555 MB/s
Blackmagic RAW Q1 - 186 a 444 MB/s
Blackmagic RAW Q3 - 124 a 318 MB/s
Blackmagic RAW Q5 - 75 a 186 MB/s

4832 x 4032 (Anamorphic 6:5)

Blackmagic RAW 3:1 - 297 MB/s
Blackmagic RAW 5:1 - 179 MB/s
Blackmagic RAW 8:1 - 112 MB/s
Blackmagic RAW 12:1 - 75 MB/s
Blackmagic RAW Q0 - 223 a 445 MB/s
Blackmagic RAW Q1 - 149 a 356 MB/s
Blackmagic RAW Q3 - 100 a 255 MB/s
Blackmagic RAW Q5 - 60 a 149 MB/s

6048 x 3200 (6K DCI 17:9)

Blackmagic RAW 3:1 - 295 MB/s
Blackmagic RAW 5:1 - 177 MB/s
Blackmagic RAW 8:1 - 111 MB/s
Blackmagic RAW 12:1 - 75 MB/s
Blackmagic RAW Q0 - 221 a 441 MB/s
Blackmagic RAW Q1 - 148 a 353 MB/s
Blackmagic RAW Q3 - 99 a 253 MB/s
Blackmagic RAW Q5 - 60 a 148 MB/s

6048 x 2520 (6K 2.4:1)

Blackmagic RAW 3:1 - 233 MB/s
Blackmagic RAW 5:1 - 140 MB/s
Blackmagic RAW 8:1 - 88 MB/s
Blackmagic RAW 12:1 - 59 MB/s
Blackmagic RAW Q0 - 175 a 348 MB/s
Blackmagic RAW Q1 - 117 a 279 MB/s
Blackmagic RAW Q3 - 78 a 199 MB/s
Blackmagic RAW Q5 - 47 a 117 MB/s

4096 x 3072 (Super 35 4:3)

Blackmagic RAW 3:1 - 192 MB/s
Blackmagic RAW 5:1 - 116 MB/s
Blackmagic RAW 8:1 - 73 MB/s
Blackmagic RAW 12:1 - 49 MB/s
Blackmagic RAW Q0 - 145 a 288 MB/s
Blackmagic RAW Q1 - 97 a 231 MB/s
Blackmagic RAW Q3 - 65 a 165 MB/s
Blackmagic RAW Q5 - 39 a 97 MB/s

4096 x 2160 (4K DCI 17:9)

Blackmagic RAW 3:1 - 136 MB/s
Blackmagic RAW 5:1 - 82 MB/s
Blackmagic RAW 8:1 - 52 MB/s
Blackmagic RAW 12:1 - 35 MB/s
Blackmagic RAW Q0 - 102 a 203 MB/s
Blackmagic RAW Q1 - 69 a 163 MB/s
Blackmagic RAW Q3 - 46 a 117 MB/s
Blackmagic RAW Q5 - 28 a 69 MB/s

2112 x 1184 (Super 16 16:9)

Blackmagic RAW 3:1 - 40 MB/s
Blackmagic RAW 5:1 - 24 MB/s
Blackmagic RAW 8:1 - 16 MB/s
Blackmagic RAW 12:1 - 11 MB/s
Blackmagic RAW Q0 - 30 a 59 MB/s
Blackmagic RAW Q1 - 21 a 48 MB/s
Blackmagic RAW Q3 - 14 a 34 MB/s
Blackmagic RAW Q5 - 9 a 21 MB/s

1920 x 1080

Blackmagic RAW 3:1 - 33 MB/s
Blackmagic RAW 5:1 - 20 MB/s
Blackmagic RAW 8:1 - 13 MB/s
Blackmagic RAW 12:1 - 9 MB/s
Blackmagic RAW Q0 - 25 a 49 MB/s
Blackmagic RAW Q1 - 17 a 40 MB/s
Blackmagic RAW Q3 - 12 a 29 MB/s
Blackmagic RAW Q5 - 8 a 17 MB/s

Constant Quality storage rates quoted are indicative only.

Actual storage rates are entirely dependent on image subject matter.

Soporte informático

Programas incluidos

Blackmagic OS

DaVinci Resolve Studio for Mac and Windows including activation key

Blackmagic Camera Setup

Blackmagic RAW Player

Blackmagic RAW QuickLook Plugin

Blackmagic RAW SDK

Blackmagic RAW Speed Test

Requisitos energéticos

Fuente de alimentación

1 x External 12V power supply.

Toma de alimentación externa

1 x 2‑pin locking connector.

Tipo de batería

BP-U

Rendimiento

11-19.5V
